The Fit Guide

HOW TO MEASURE
FOR THE PERFECT FIT

Five minutes with a tape measure saves you a return. Pick your category below and follow the steps — works for any boat, outboard or caravan.

Boat Covers Outboard Motor Covers Caravan Covers

THE 3 GOLDEN RULES

  • Measure in metres or feet — pick one and stick with it. Don't mix.
  • If you're between sizes, ALWAYS go UP. A slightly loose cover beats one that won't close.
  • Measure twice, write it down. Then send us a photo of your setup if you're unsure — we'll confirm before you order.
Step 1

BOAT COVERS

Measure your boat from the tip of the bow to the centre of the transom (back). Always measure the hull length only — not the trailer, swim platform, anchor bracket or outboard.

You'll need

  • Tape measure (10m+)
  • A friend to hold the tape
  • Pen & paper

Measure these points

  1. 1
    Centre-line length (A)
    Run the tape along the top centre of the boat from the tip of the bow to the centre of the transom. Keep it taut and level.
  2. 2
    Maximum beam (B)
    Measure the widest point of the boat, usually across the middle of the cockpit, gunwale to gunwale.
  3. 3
    Windshield height (C)
    From the deck up to the highest point of the windshield, bow rail or T-top.
  4. 4
    Hull type
    Note whether you have a runabout, centre console, bowrider, cuddy cabin, walkaround or tinnie — fit varies by style.
Pro Tips
  • ▸Do NOT include outboard motor or bow pulpit length — those use separate covers.
  • ▸If your measurement falls between sizes, ALWAYS go up one size.
  • ▸Allow extra length for a bow rail or pulpit (add ~30cm).

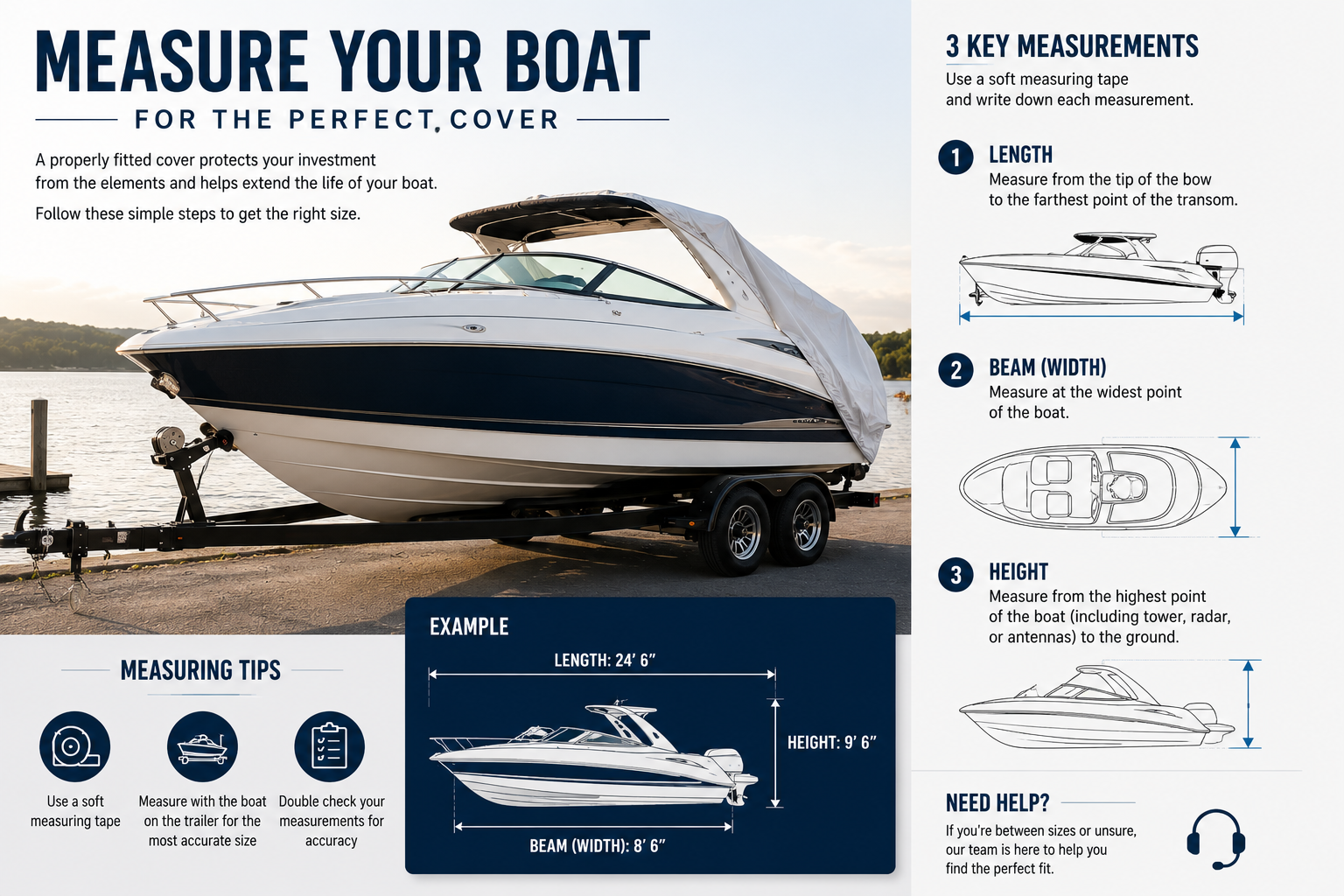

How to measure your boat — length, beam and height
Step 2

OUTBOARD MOTOR COVERS

Outboard covers come in two styles: Full cover (covers the entire leg + cowl) and Half / Vented cover (cowl only, for use while running or trailering).

You'll need

  • Tape measure (3m)
  • Motor make, model & HP

Measure these points

  1. 1
    Cowl length (A)
    From the front of the cowl to the rear, along the top.
  2. 2
    Cowl width (B)
    Widest point of the cowl, side to side.
  3. 3
    Cowl height (C)
    From the bottom of the cowl (where it meets the midsection) to the top.
  4. 4
    Leg length (D) — full covers only
    Distance from the bottom of the cowl down to the cavitation plate above the prop. Common sizes: 15" (Short), 20" (Long), 25" (X-Long), 30" (XX-Long).
  5. 5
    Number of cylinders & HP
    e.g. Yamaha F150D 4CYL 2.8L 2023>. This is the fastest way to find your exact fit.
Pro Tips
  • ▸Engine make + model + year is more reliable than measurements — use it first.
  • ▸Half covers are designed to stay on while the engine is running.
  • ▸Don't try to fit a 4-stroke cover to a 2-stroke (or vice versa) — cowls are completely different shapes.

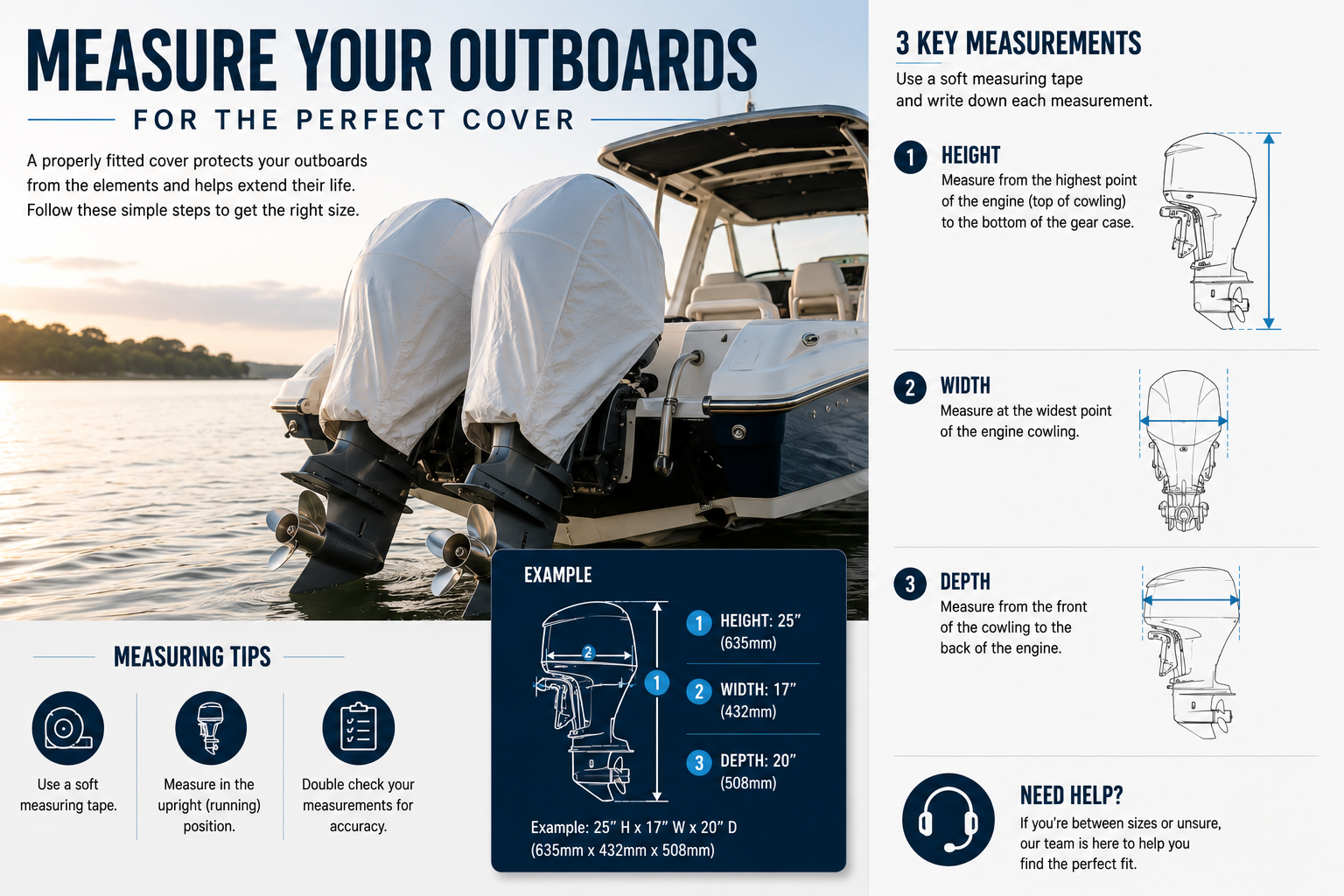

How to measure your outboard motor — height, width and depth
Step 3

CARAVAN COVERS

Caravan covers are sized by body length only — that's the length of the van itself, not including the A-frame/drawbar or rear bumper bar.

You'll need

  • Tape measure (10m+)
  • Step ladder (for height check)
  • A helper

Measure these points

  1. 1
    Body length (A)
    From the FRONT of the caravan body (where it meets the A-frame) to the very BACK of the body. Do NOT include the drawbar or spare wheel.
  2. 2
    Overall width (B)
    Widest point of the van, side to side, including any flares but excluding awnings and pulled-in steps.
  3. 3
    Overall height (C)
    From ground to the highest point — usually the air conditioner, antenna or roof hatch.
  4. 4
    Features to note
    Pop-top, rooftop A/C, solar panels, awning, sloped front — these all affect cover style and seam placement.
Pro Tips
  • ▸Roll back awnings, fold steps in and lower the antenna before measuring.
  • ▸Cover lengths are listed as ranges (e.g. 18'–20' / 5.5–6.1m). If you're between ranges, go UP.
  • ▸Pop-top vans need a pop-top-specific cover with extra room at the top seam.
How to measure your caravan — length, width and height

STILL NOT SURE?

Send us your measurements and a photo — we'll confirm the right cover before you order. No charge, no pressure.
